RedisJSON: A Redis JSON Store

Redis modules are bundled and packaged as part of Redis Enterprise Software. Download the modules (including RedisJSON) to upgrade Redis Enterprise Software with the latest module version.

redis json image with Redis Stack

Ready to jump right into RedisJSON? Check out Getting Started with RedisJSON on the Redis Developer site!


RedisJSON is a Redis module that provides native JSON capabilities—simply run the Docker Image for Redis with RedisJSON, visit the GitHub repository, or read the docs online.

Both JSON and Redis need no introduction; the former is the standard data interchange format between modern applications, whereas the latter is ubiquitous wherever performant data management is needed by them. That being the case, I was shocked when a couple of years ago I learned that the two don’t get along.

Redis isn’t a one-trick pony–it is, in fact, quite the opposite. Unlike general purpose one-size-fits-all databases, Redis (a.k.a the “Swiss Army Knife of Databases,” “Super Glue of Microservices.” and “Execution context of Functions-as-a-Service”) provides specialized tools for specific tasks. Developers use these tools, which are exposed as abstract data structures and their accompanying operations, to model optimal solutions for problems. And that is exactly the reason why using Redis for managing JSON data is unnatural. So how do we use the RedisJSON module?

Fact: despite its multitude of core data structures, Redis had none that fit the requirements of a JSON value. Sure, you can work around that by using other data types: Strings are great for storing raw serialized JSON, and you can represent flat JSON objects with Hashes. But these workaround patterns impose limitations that make them useful only in a handful of use cases, and even then the experience leaves an un-Redis-ish aftertaste. Their awkwardness clashes sharply with the simplicity and elegance of using Redis normally.

But all that changed during the last year after Salvatore Sanfilippo’s @antirez visit to Redis’ Tel Aviv office, and with Redis modules becoming a reality. Suddenly the sky wasn’t the limit anymore. Now that modules let anyone do anything, it turned out that I could be that particular anyone. Picking up on C development after more than a two decades hiatus proved to be less of a nightmare than I had anticipated, and with Dvir Volk’s @dvirsky loving guidance we birthed RedisJSON.

While you may not be thrilled about its name (I know that I’m not—suggestions are welcome), RedisJSON itself should make any Redis user giddy with JSON joy. The module provides a new data type that is tailored for fast and efficient manipulation of JSON documents. Like any Redis data type, RedisJSON’s values are stored in keys that can be accessed with a specialized subset of commands. These commands, or the API that the module exposes, are designed to be intuitive to users coming to Redis from the JSON world and vice versa. Consider this example that shows how to set and get values:> JSON.SET scalar . '"Hello JSON!"'
OK> JSON.SET object . '{"foo": "bar", "ans": 42}'
OK> JSON.GET object
"{"foo":"bar","ans":42}"> JSON.GET object .ans
"42"> ^C

Like any well-behaved module, RedisJSON’s commands come prefixed. Both JSON.SET and JSON.GET expect the key’s name as their first argument. In the first line we set the root (denoted by a period character: “.”) of the key named scalar to a string value. Next, a different key named object is set with a JSON object (which is first read whole) and then a single sub-element by path.

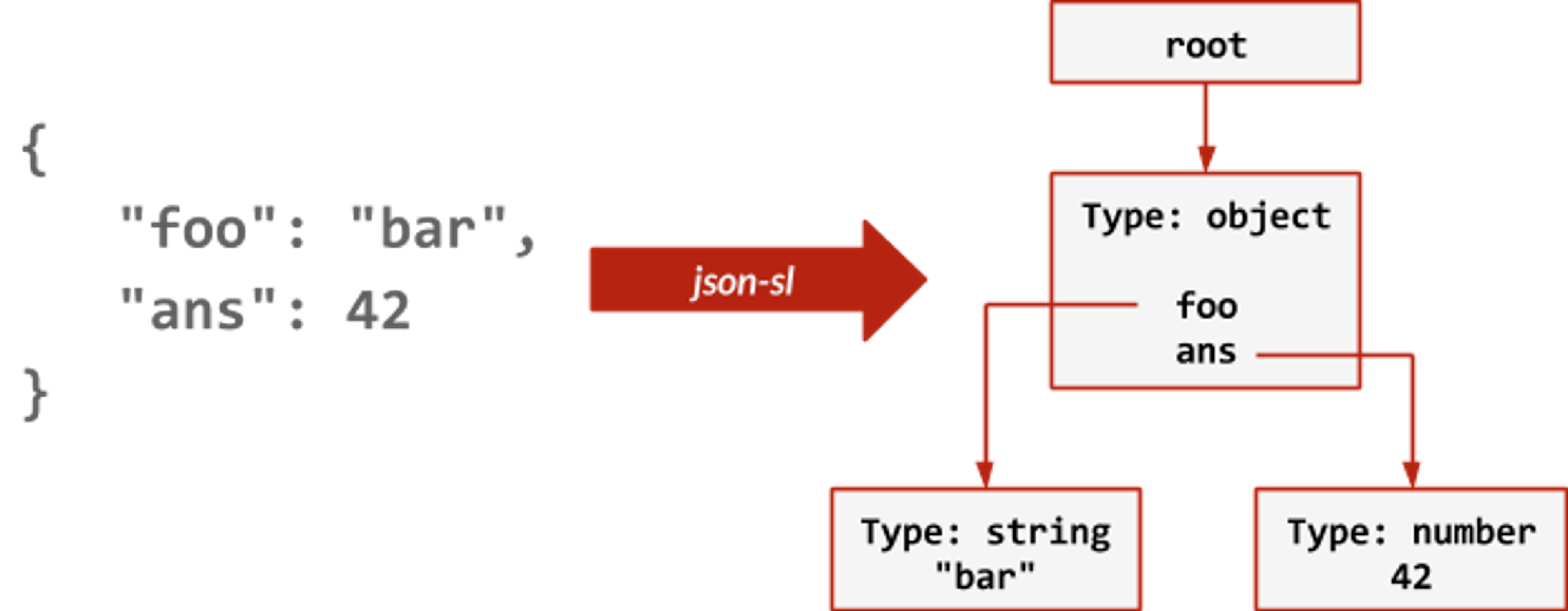

What happens under the hood is that whenever you call JSON.SET, the module takes the value through a streaming lexer that parses the input JSON and builds tree data structure from it:

redis json commands

RedisJSON stores the data in binary format in the tree’s nodes, and supports a subset of JSONPath for easy referencing of subelements. It boasts an arsenal of atomic commands that are tailored for every JSON value type, including: JSON.STRAPPEND for appending strings; JSON.NUMMULTBY for multiplying numbers; and JSON.ARRTRIM for trimming arrays… and making pirates happy. All with RedisJSON.

Because RedisJSON is implemented as a Redis module, you can use it with any Redis client that: a) supports modules (ATM none) or b) allows sending raw commands (ATM most). For example, you can use a RedisJSON-enabled Redis server from your Python code with redis-py like so:

import redis
import json

data = {
    'foo': 'bar',
    'ans': 42

r = redis.StrictRedis()
r.execute_command('JSON.SET', 'object', '.', json.dumps(data))
reply = json.loads(r.execute_command('JSON.GET', 'object'))

But that’s just half of it. RedisJSON isn’t only a pretty API, it’s also a powerhouse in terms of performance. Initial performance benchmarks already demonstrate that, for example:

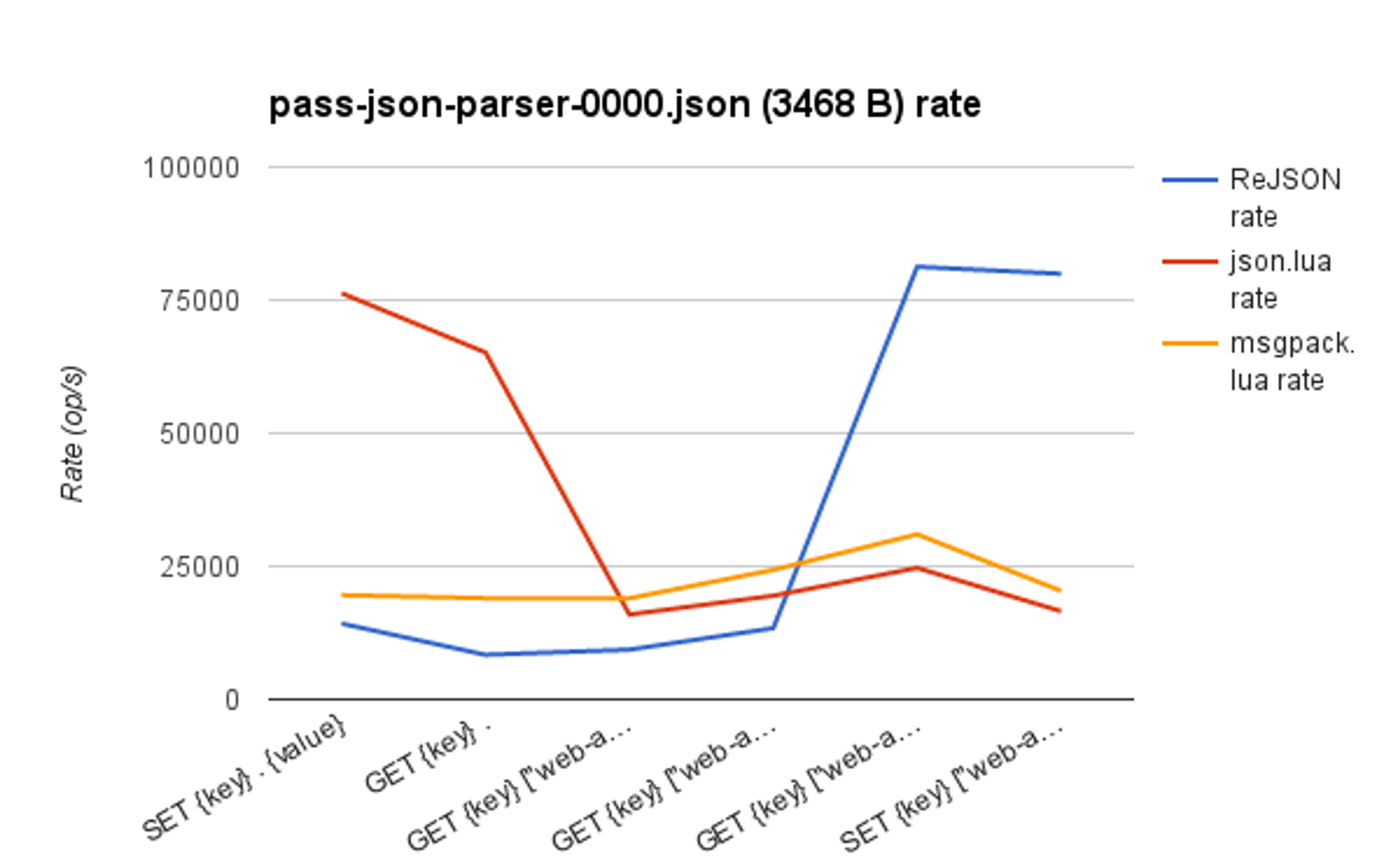

ReJSON json.lua msgpack lua rate graph

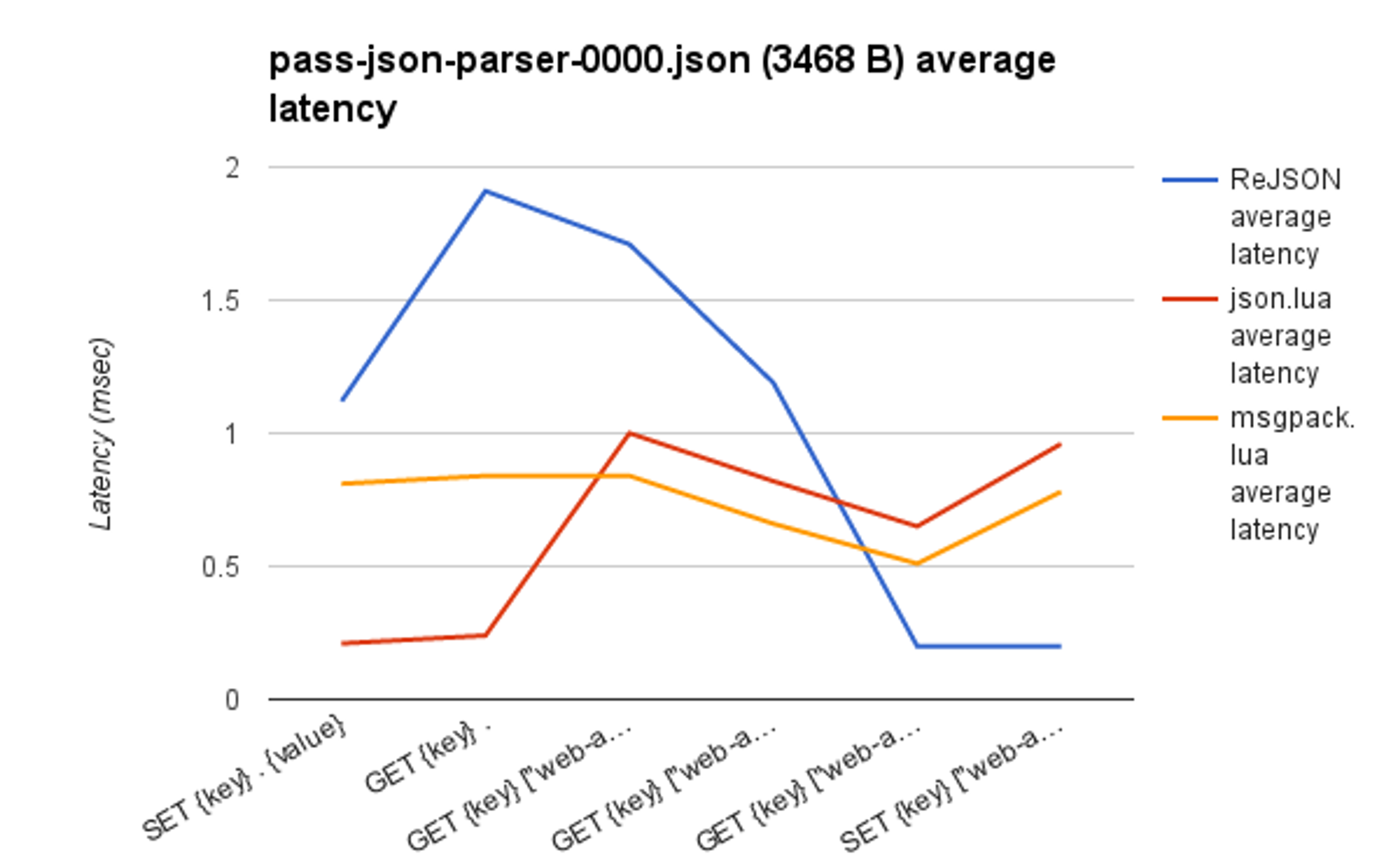

REJSON json.lua msgpack lua average latency graph

The above graphs compare the rate (operations/sec) and average latency of read and write operations performed on a 3.4KB JSON payload that has three nested levels. RedisJSON is pitted against two variants that store the data in Strings. Both variants are implemented as Redis server-side Lua scripts with the json.lua variant storing the raw serialized JSON, and msgpack.lua using MessagePack encoding.

If you have 21 minutes to spare, here’s the RedisJSON presentation from Redis Day TLV:

You can start playing with RedisJSON today!

# docker run -d -p 6379:6379 --name redis-rejson redis/rejson:latest

There are still many features that we want to add to it, but over all RedisJSON is pretty neat. If you have feature requests or have spotted an issue, feel free to use the repo’s issue tracker. You can always email or tweet at me—I’m highly-available 🙂
