Manage access

Create Radar users, assign roles, and connect LDAP or SAML SSO.

Redis Radar

This page applies to self-managed Radar installations. Redis Cloud manages Radar users and roles for you, so the local accounts, roles, LDAP, and SAML SSO described here do not apply there.

Radar has two roles, administrator and viewer, one of which is assigned to every user. Users sign in with a local Radar account, through your directory over LDAP, or through your identity provider with SAML SSO.

Create local accounts under Users. Choose and configure the sign-in method under Settings > Authentication, where that choice applies to all of Radar.

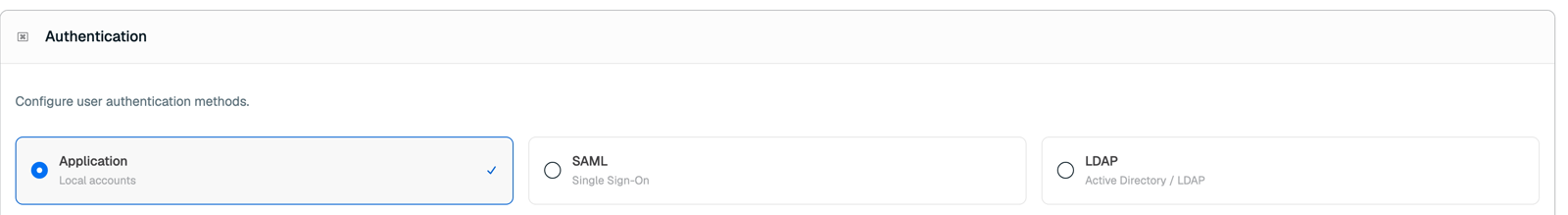

The Settings > Authentication page, showing the Application, SAML, and LDAP method selector

Roles

Role	Can do
Admin	Everything a viewer can, plus add and remove connections, manage users, and change settings.
Viewer	Read the fleet: clusters, databases, usage, and alerts.

A role applies to the entire fleet. You cannot scope a user to a subset of clusters.

New users are viewers unless you choose otherwise. Only admins can see or change users; the Users area is hidden from viewers.

Create local users

Go to Users and add a user.
Enter a username and email address.
Set a password. It must be 6 to 128 characters and contain at least one uppercase letter.
Choose a role.

The Users list shows each account's role, where it authenticates, when it was created, and its last sign-in, so you can tell a local account from a directory account at a glance.

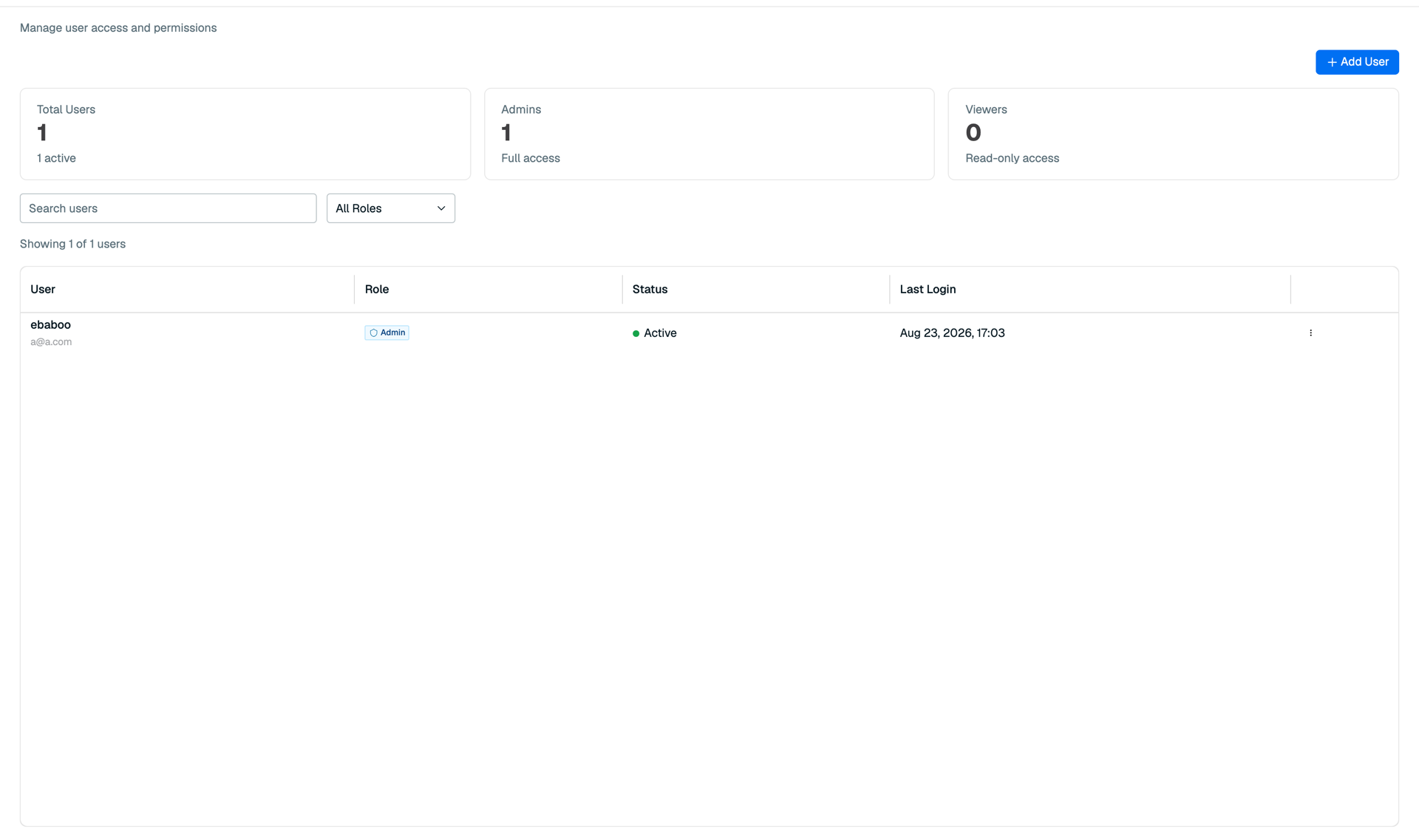

The Users page, listing a local account with its role, status, and last login

If an account locks, admins unlock it from the same list.

Radar creates no default account and ships no default password. The one-time bootstrap flow creates the first administrator while the database has no users. See Install Radar.

Connect a directory with LDAP

Radar authenticates against your directory and takes each user's role from their group membership, so you grant and revoke Radar access by changing groups.

Configure LDAP under Settings > Authentication, in the Active Directory / LDAP section.

Connect to the directory

Enter the network address of your directory server and the bind account Radar uses to search it:

Setting	Description
Server host	The hostname or IP address of the directory server.
Server port	Port the directory listens on.
Bind DN	Distinguished name of the account Radar uses to search the directory.
Bind password	Password for the bind account.
Base DN	Where in the directory tree Radar looks for users.

Find the user

Radar resolves a username one of two ways. Set the one that matches your directory:

Setting	Description
User filter	An LDAP search filter. Radar substitutes `{username}` with the name entered at sign-in. Use this when users are spread across the tree.
User DN pattern	A distinguished name template containing `{username}`, used to bind directly. Use this when every user's DN follows one predictable shape.

If both are set, the search filter takes precedence.

Map groups to roles

Map your directory's groups to Radar's two roles:

Setting	Description
Group base DN	Where in the tree Radar looks for groups.
Group filter	A search filter for a user's groups. Radar substitutes `{userDn}` with the user's distinguished name.
Admin group DN	Members of this group sign in as admins.
Viewer group DN	Members of this group sign in as viewers.

Secure the connection

Configure how Radar's connection to the directory is encrypted:

Setting	Description
Use SSL	Connect over LDAPS.
Start TLS	Upgrade a plain connection to TLS after connecting.
Validate certificate	Verify the directory's certificate. Leave this on.
CA certificate	The certificate authority chain in PEM format, if your directory uses a private CA.

Warning:

Turning off certificate validation means Radar sends the bind password over a connection it has not verified. Supply the CA certificate instead.

Set up SAML SSO

Radar acts as the service provider and your identity provider asserts who the user is and what role they get.

Configure SAML under Settings > Authentication, in the Single Sign-On section.

1. Give Radar its address

Enter the service address: the URL where users reach Radar. Radar derives its service provider entity ID and its assertion consumer service (ACS) URL from it, then displays both so you can register them with your identity provider.

Get the address right the first time. It is the value your identity provider validates against, so a mismatch fails every sign-in.

2. Enter your identity provider's details

Setting	Description
IdP entity ID	The identity provider's unique identifier.
IdP SSO URL	Where Radar sends users to sign in.
IdP certificate	The identity provider's signing certificate, in PEM format. Radar verifies assertions against it.

3. Supply the service provider certificate

Provide Radar's own certificate and private key in PEM format so it can sign requests. Radar encrypts the private key at rest and never returns it through the API. Leaving these fields empty keeps whatever is already stored, so you do not have to re-paste them to change another setting.

4. Map assertion values to roles

Tell Radar which assertion attribute carries the role, and which values grant each one:

Setting	Description
Role attribute	The assertion attribute Radar reads the role from.
Admin role values	Values in that attribute that grant the administrator role.
Viewer role values	Values that grant the viewer role.

5. Restrict and enforce

Narrow who can sign in through SSO and decide whether local passwords still work alongside it:

Setting	Description
Allowed email domains	Only accept assertions for users in these domains.
Require link confirmation	Ask a user to confirm before their identity provider account is linked to an existing Radar account.
Enforce SSO	Require SSO and stop accepting local passwords.
