Enable OSS Cluster API

Review Redis OSS Cluster API to determine if you should enable this feature for your database.

Prerequisites

The Redis OSS Cluster API is supported only when a database meets specific criteria.

The database must:

• Use the standard hashing policy.
• Have the proxy policy set to either All primary shards or All nodes.

In addition, the database must not:

• Use node include or exclude in the proxy policy.
• Use RediSearch, RedisTimeSeries, or RedisGears modules.

The OSS Cluster API setting applies to individual databases instead of the entire cluster.

Enable OSS Cluster API support

You can use the Cluster Manager UI or the rladmin utility to enable OSS Cluster API support for a database.

When you enable OSS Cluster API support for an existing database, the change applies to new connections but does not affect existing connections. Clients must close existing connections and reconnect to apply the change.

Cluster Manager UI

When you use the Cluster Manager UI to enable the OSS Cluster API, it automatically configures the prerequisites.

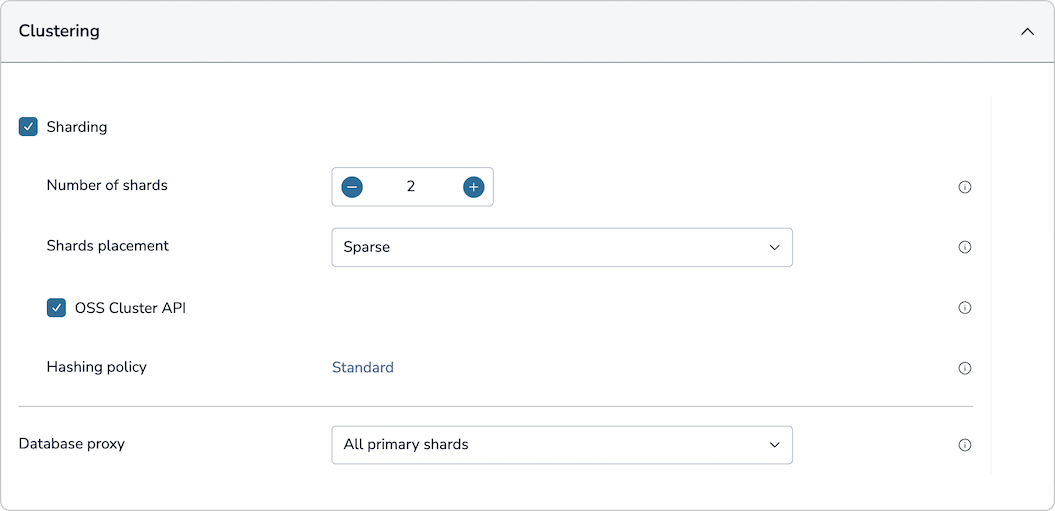

To enable the OSS Cluster API for an existing database in the Cluster Manager UI:

1. From the database's Configuration tab, select Edit.

2. Expand the Clustering section.

3. Select Enable sharding.

4. Select OSS Cluster API.



5. Select Save.

You can also use the Cluster Manager UI to enable the setting when creating a new database.

Command line (rladmin)

You can use the rladmin utility to enable the OSS Cluster API for Redis Enterprise Software databases, including Replica Of databases.

For Active-Active (CRDB) databases, use the crdb-cli utility.

Ensure the prerequisites have been configured. Then, enable the OSS Cluster API for a Redis database from the command line:

$ rladmin tune db <database name or ID> oss_cluster enabled

To determine the current setting for a database from the command line, use rladmin info db to return the value of the oss_cluster setting.

$ rladmin info db test | grep oss_cluster:
  oss_cluster: enabled

The OSS Cluster API setting applies to the specified database only; it does not apply to the cluster.

Active-Active databases

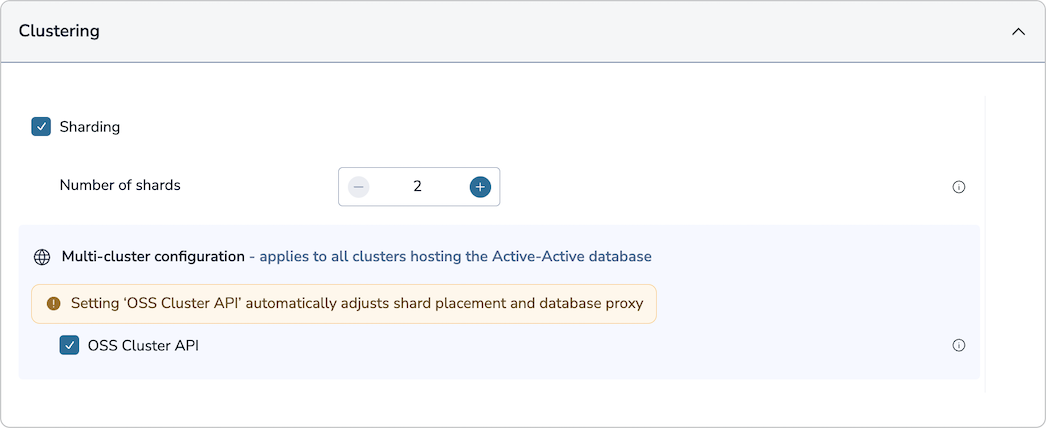

The OSS Cluster API setting applies to all instances of the Active-Active database across participating clusters. To enable the OSS Cluster API for Active-Active databases, use the Cluster Manager UI or the crdb-cli utility.

To create an Active-Active database and enable the OSS Cluster API with crdb-cli:

$ crdb-cli crdb create --name <name> \
    --memory-size 10g --port <port> \
    --sharding true --shards-count 2  \
    --replication true --oss-cluster true --proxy-policy all-master-shards \
    --instance fqdn=<fqdn>,username=<user>,password=<pass> \
    --instance fqdn=<fqdn>,username=<user>,password=<pass> \
    --instance fqdn=<fqdn>,username=<user>,password=<pass>

See the crdb-cli crdb create reference for more options.

To enable the OSS Cluster API for an existing Active-Active database with crdb-cli:

1. Obtain the CRDB-GUID for the new database:

   $ crdb-cli crdb list
   CRDB-GUID    NAME   REPL-ID  CLUSTER-FQDN
   <CRDB-GUID>  Test   4        cluster1.local


2. Use the CRDB-GUID to enable the OSS Cluster API:

   $ crdb-cli crdb update --crdb-guid <CRDB-GUID> \
       --oss-cluster true


Turn off OSS Cluster API support

To deactivate OSS Cluster API support for a database, either:

• Use the Cluster Manager UI to turn off the OSS Cluster API in the Clustering section of the database Configuration settings.

• Use the appropriate utility to deactivate the OSS Cluster API setting.

  For standard databases, including Replica Of, use rladmin:

  $ rladmin tune db <name or ID> oss_cluster disabled


  For Active-Active databases, use the Cluster Manager UI or crdb-cli:

  $ crdb-cli crdb update --crdb-guid <CRDB-GUID> \
      --oss-cluster false


When you turn off OSS Cluster API support for an existing database, the change applies to new connections but does not affect existing connections. Clients must close existing connections and reconnect to apply the change.

Multi-key command support

When you enable the OSS Cluster API for a database, multi-key commands are only allowed when all keys are mapped to the same slot.

To verify that your database meets this requirement, make sure that the CLUSTER KEYSLOT reply is the same for all keys affected by the multi-key command. To learn more, see multi-key operations.
