Command Query Responsibility Segregation (CQRS) is a critical pattern within a microservice architecture. It decouples reads (queries) and writes (commands), which permits read and write workloads to work independently.
Commands(write) focus on higher durability and consistency, while queries(read) focus on performance. This enables a microservice to write data to a slower system of record disk-based database, while pre-fetching and caching that data in a cache for real-time reads.
The idea is simple: you separate commands such as "Order this product" (a write operation) from queries such as "Show me my order history" (a read operation). CQRS applications are often messaging-based and rely on eventual consistency.
The sample data architecture that follows demonstrates how to use Redis with CQRS:

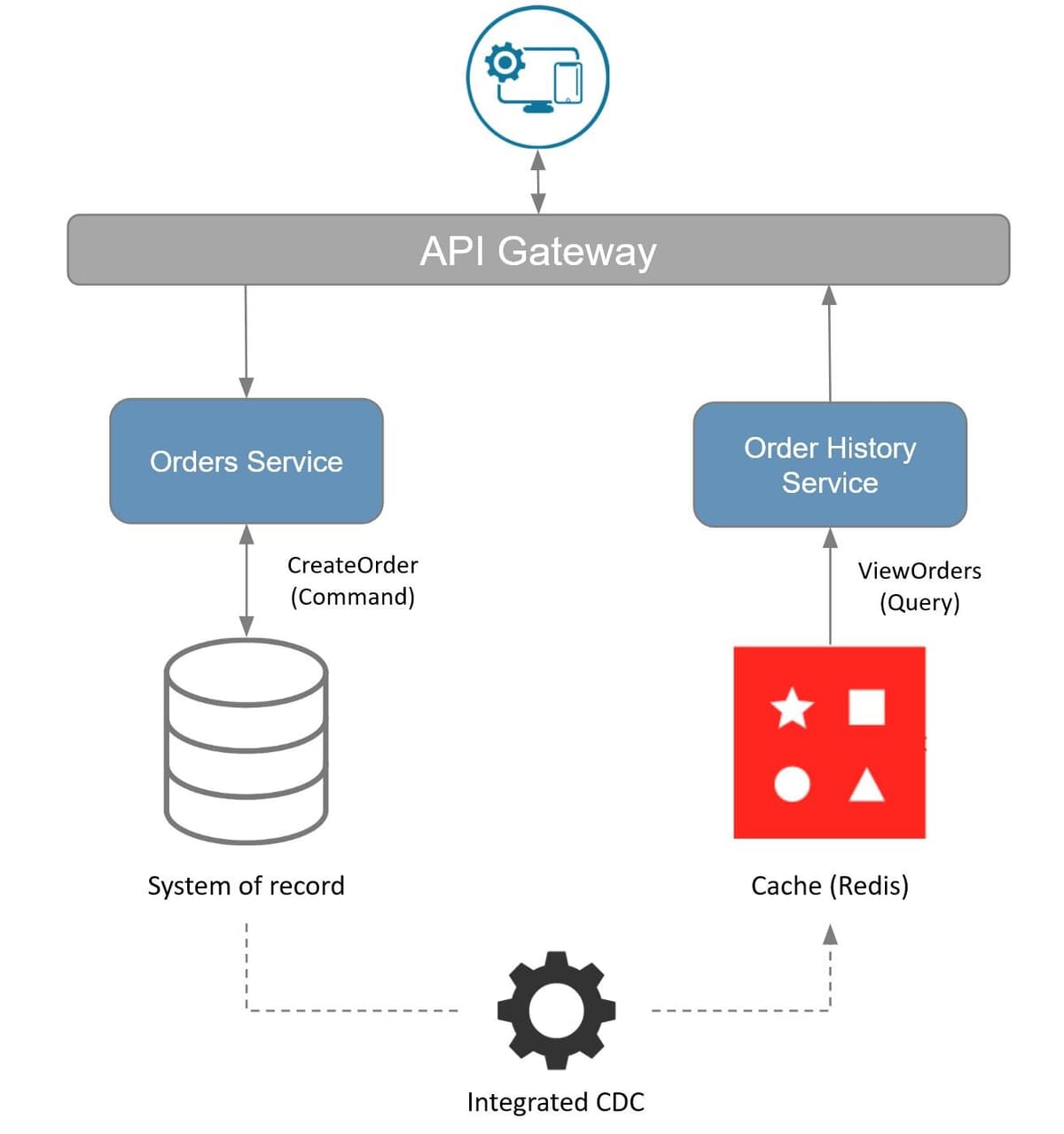

The architecture illustrated in the diagram uses the Change Data Capture pattern (noted as "Integrated CDC") to track the changed state on the command database and to replicate it to the query database (Redis). This is a common pattern used with CQRS.
Implementing CDC requires:
While you can implement your own CDC mechanism with Redis using Triggers and Functions, Redis Cloud comes with its own integrated CDC mechanism to solve this problem for you.
To improve application performance, scale your read and write operations separately.
Consider the following scenario: You have an e-commerce application that allows a customer to populate a shopping cart with products. The site has a "Buy Now" button to facilitate ordering those products. When first starting out, you might set up and populate a product database (perhaps a SQL database). Then you might write a backend API to handle the processes of creating an order, creating an invoice, processing payments, handling fulfillment, and updating the customer's order history… all in one go.
This method of synchronous order processing seemed like a good idea. But you soon find out that your database slows down as you gain more customers and have a higher sales volume. In reality, most applications have significantly more reads than writes. You should scale those operations separately.
You decide that you need to process orders quickly so the customer doesn't have to wait. Then, when you have time, you can create an invoice, process payment, handle fulfillment, etc.
So you decide to separate each of these steps. Using a microservices approach with CQRS allows you to scale your reads and writes independently as well as aid in decoupling your microservices. With a CQRS model, a single service is responsible for handling an entire command from end to end. One service should not depend on another service in order to complete a command.
Lets take a look at the architecture of the demo application:
products service: handles querying products from the database and returning them to the frontendorders service: handles validating and creating ordersorder history service: handles querying a customer's order historypayments service: handles processing orders for paymentapi gateway: unifies the services under a single endpointmongodb/ postgresql: serves as the write-optimized database for storing orders, order history, products, etc.You don't need to use MongoDB/ Postgresql as your write-optimized database in the demo application; you can use other prisma supported databases as well. This is just an example.
Note that in the current architecture all the services use the same underlying database. Even though you’re technically separating reads and writes, you can't scale the write-optimized database independently. This is where Redis comes in. If you put Redis in front of your write-optimized database, you can use it for reads while writing to the write-optimized database. The benefit of Redis is that it’s fast for reads and writes, which is why it’s the best choice for caching and CQRS.
For the purposes of this tutorial, we’re not highlighting how communication is coordinated between our services, such as how new orders are processed for payment. That process uses Redis Streams, and is outlined in our interservice communication guide.
When your e-commerce application eventually needs to scale across the globe, Redis Cloud provides Active-Active geo-distribution for reads and writes at local latencies as well as availability of 99.999% uptime.
Let's look at some sample code that helps facilitate the CQRS pattern with Redis and Primary database (MongoDB/ Postgressql).
The e-commerce microservices application consists of a frontend, built using Next.js with TailwindCSS. The application backend uses Node.js. The data is stored in Redis and MongoDB/ Postgressql using Prisma. Below you will find screenshots of the frontend of the e-commerce app:

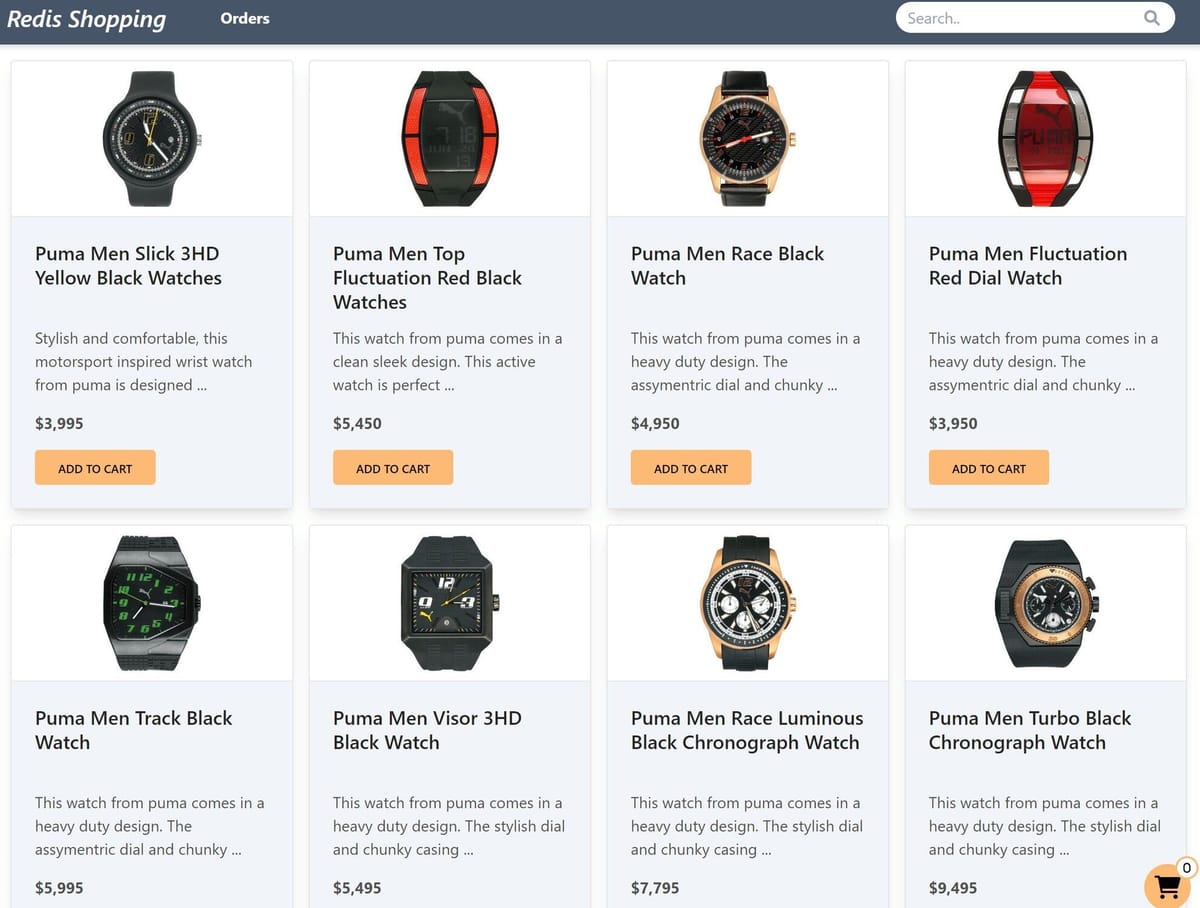

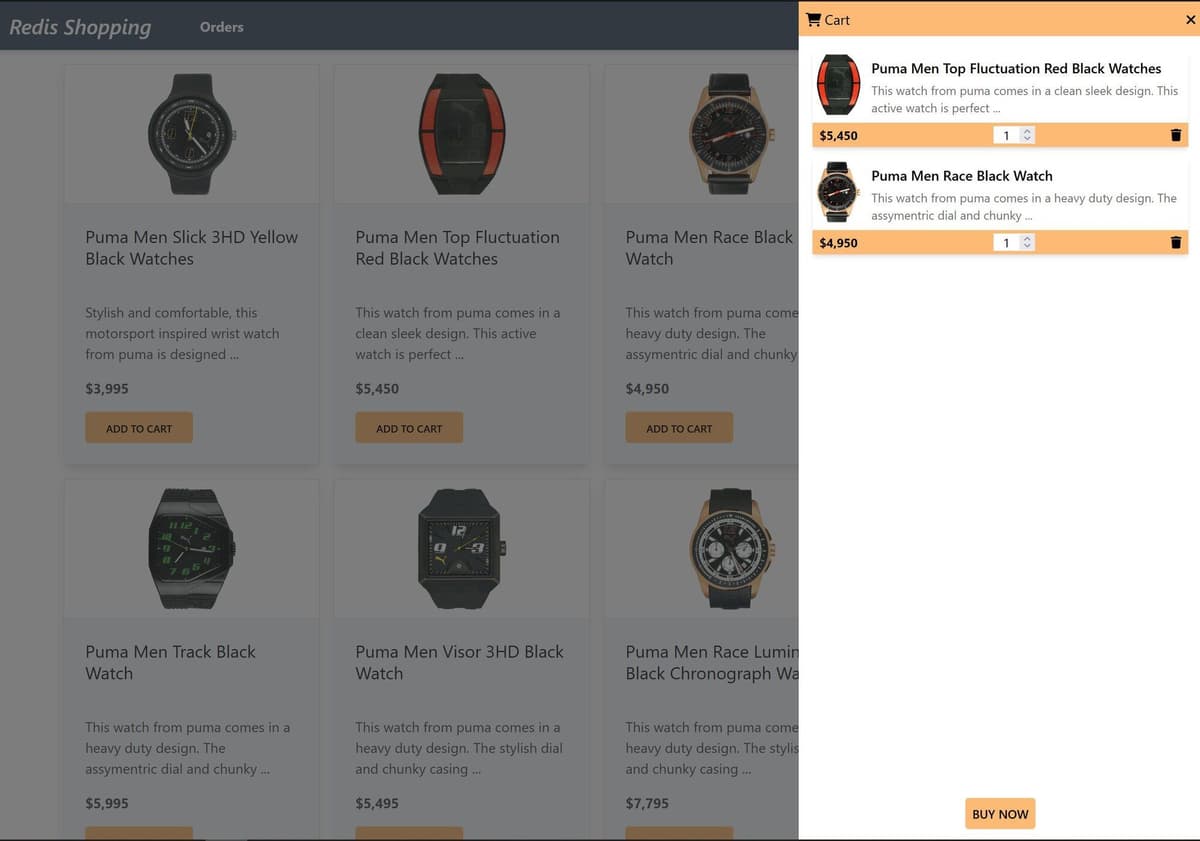

Dashboard: Shows the list of products with search functionalityShopping Cart: Add products to the cart, then check out using the "Buy Now" button

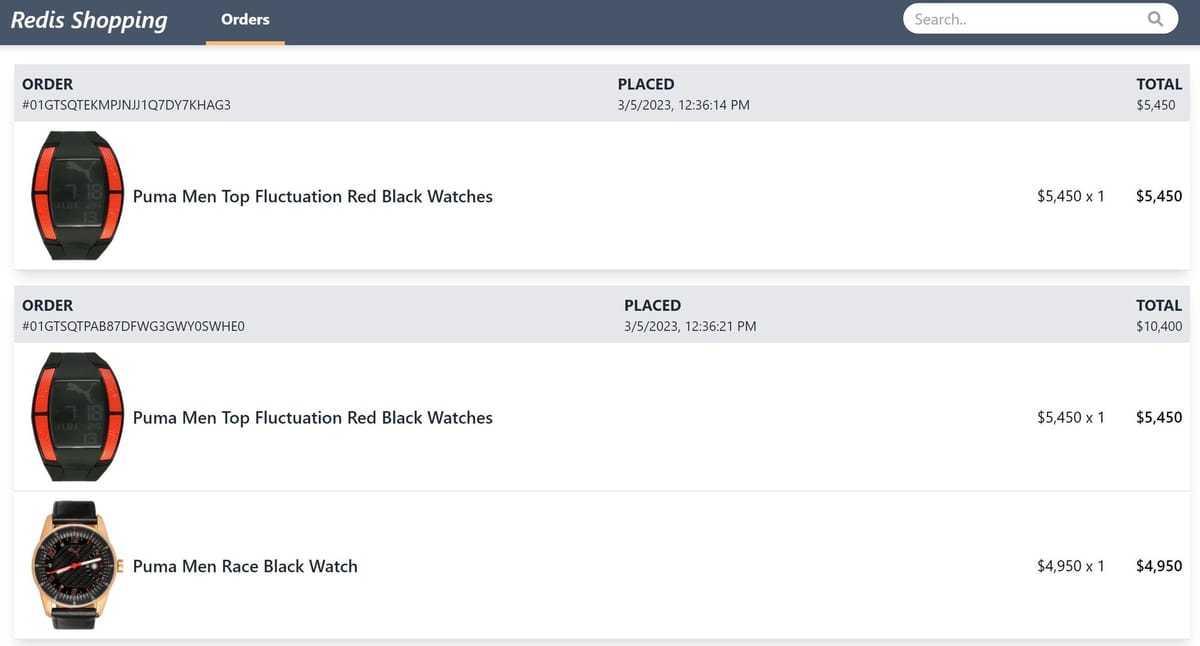

Order history: Once an order is placed, the Orders link in the top navigation bar shows the order status and history
Below is a command to the clone the source code for the application used in this tutorial
git clone --branch v4.2.0 https://github.com/redis-developer/redis-microservices-ecommerce-solutions
Let's look at the sample code for the order service and see the CreateOrder command (a write operation). Then we look at the order history service to see the ViewOrderHistory command (a read operation).
The code that follows shows an example API request and response to create an order.
// POST http://api-gateway/orders/createOrder
{
"products": [
{
"productId": "11002",
"qty": 1,
"productPrice": 4950
},
{
"productId": "11012",
"qty": 2,
"productPrice": 1195
}
]
}{
"data": "d4075f43-c262-4027-ad25-7b1bc8c490b6", //orderId
"error": null
}When you make a request, it goes through the API gateway to the orders service. Ultimately, it ends up calling a createOrder function which looks as follows:
const createOrder = async (
order: IOrder,
//...
) => {
if (!order) {
throw 'Order data is mandatory!';
}
const userId = order.userId || USERS.DEFAULT; // Used as a shortcut, in a real app you would use customer session data to fetch user details
const orderId = uuidv4();
order.orderId = orderId;
order.orderStatusCode = ORDER_STATUS.CREATED;
order.userId = userId;
order.createdBy = userId;
order.statusCode = DB_ROW_STATUS.ACTIVE;
order.potentialFraud = false;
order = await validateOrder(order);
const products = await getProductDetails(order);
addProductDataToOrders(order, products);
await addOrderToRedis(order);
await addOrderToPrismaDB(order);
//...
return orderId;
};For tutorial simplicity, we add data to both primary database and Redis in the same service (double-write). As mentioned earlier, a common pattern is to have your services write to one database, and then separately use a CDC mechanism to update the other database. For example, you could write directly to Redis, then use RedisGears to handle synchronizing Redis and primary database in the background. For the purposes of this tutorial, we don't outline exactly how you might handle synchronization, but instead focus on how the data is stored and accessed in Redis.
If you're using Redis Cloud, you can take advantage of the integrated CDC mechanism to avoid having to roll your own.
Note that in the previous code block we call the addOrderToRedis function to store orders in Redis. We use Redis OM for Node.js to store the order entities in Redis. This is what that function looks like:
import { Schema, Repository } from 'redis-om';
import { getNodeRedisClient } from '../utils/redis/redis-wrapper';
//Redis Om schema for Order
const schema = new Schema('Order', {
orderId: { type: 'string', indexed: true },
orderStatusCode: { type: 'number', indexed: true },
potentialFraud: { type: 'boolean', indexed: false },
userId: { type: 'string', indexed: true },
createdOn: { type: 'date', indexed: false },
createdBy: { type: 'string', indexed: true },
lastUpdatedOn: { type: 'date', indexed: false },
lastUpdatedBy: { type: 'string', indexed: false },
statusCode: { type: 'number', indexed: true },
});
//Redis OM repository for Order (to read, write and remove orders)
const getOrderRepository = () => {
const redisClient = getNodeRedisClient();
const repository = new Repository(schema, redisClient);
return repository;
};
//Redis indexes data for search
const createRedisIndex = async () => {
const repository = getRepository();
await repository.createIndex();
};
const addOrderToRedis = async (order: OrderWithIncludes) => {
if (order) {
const repository = getOrderRepository();
//insert Order in to Redis
await repository.save(order.orderId, order);
}

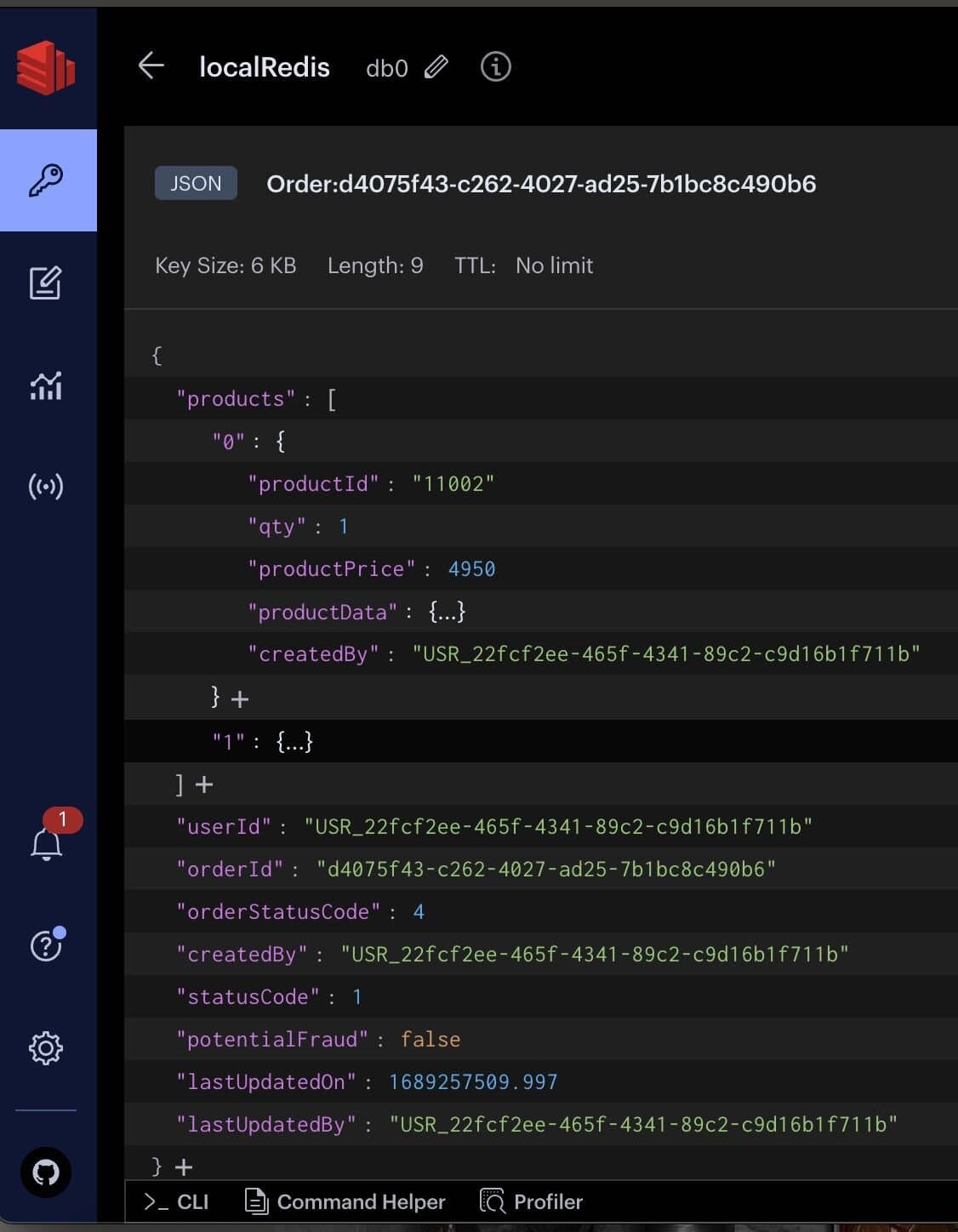

};Sample Order view using RedisInsight
Download RedisInsight to view your Redis data or to play with raw Redis commands in the workbench.
The code that follows shows an example API request and response to get a customer's order history.
// GET http://api-gateway/orderHistory/viewOrderHistory{
"data": [
{
"orderId": "d4075f43-c262-4027-ad25-7b1bc8c490b6",
"userId": "USR_22fcf2ee-465f-4341-89c2-c9d16b1f711b",
"orderStatusCode": 4,
"products": [
{
"productId": "11002",
"qty": 1,
"productPrice": 4950,
"productData": {
"productId": "11002",
"price": 4950,
"productDisplayName": "Puma Men Race Black Watch",
"variantName": "Race 85",
"brandName": "Puma",
"ageGroup": "Adults-Men",
"gender": "Men",
"displayCategories": "Accessories",
"masterCategory_typeName": "Accessories",
"subCategory_typeName": "Watches",
"styleImages_default_imageURL": "http://host.docker.internal:8080/images/11002.jpg",
"productDescriptors_description_value": "<p>This watch from puma comes in a heavy duty design. The assymentric dial and chunky..."
}
},
{
"productId": "11012",
"qty": 2,
"productPrice": 1195,
"productData": {
"productId": "11012",
"price": 1195,
"productDisplayName": "Wrangler Women Frill Check Multi Tops",
"variantName": "FRILL CHECK",
"brandName": "Wrangler",
"ageGroup": "Adults-Women",
"gender": "Women",
"displayCategories": "Sale and Clearance,Casual Wear",
"masterCategory_typeName": "Apparel",
"subCategory_typeName": "Topwear",
"styleImages_default_imageURL": "http://host.docker.internal:8080/images/11012.jpg",
"productDescriptors_description_value": "<p><strong>Composition</strong><br /> Navy blue, red, yellow and white checked top made of 100% cotton, with a jabot collar, buttoned ..."
}
}
],
"createdBy": "USR_22fcf2ee-465f-4341-89c2-c9d16b1f711b",
"lastUpdatedOn": "2023-07-13T14:11:49.997Z",
"lastUpdatedBy": "USR_22fcf2ee-465f-4341-89c2-c9d16b1f711b"
}
],
"error": null
}When you make a request, it goes through the API gateway to the order history service. Ultimately, it ends up calling a viewOrderHistory function, which looks as follows:
const viewOrderHistory = async (userId: string) => {
const repository = OrderRepo.getRepository();
let orders: Partial<IOrder>[] = [];
const queryBuilder = repository
.search()
.where('createdBy')
.eq(userId)
.and('orderStatusCode')
.gte(ORDER_STATUS.CREATED) //returns CREATED and PAYMENT_SUCCESS
.and('statusCode')
.eq(DB_ROW_STATUS.ACTIVE);
console.log(queryBuilder.query);
orders = <Partial<IOrder>[]>await queryBuilder.return.all();
};Note that the order history service only needs to go to Redis for all orders. This is because we handle storage and synchronization between Redis and primary database within the orders service.
You might be used to using Redis as a cache and both storing and retrieving stringified JSON values or perhaps hashed values. However, look closely at the code above. In it, we store orders as JSON documents, and then use Redis OM to search for the orders that belong to a specific user. Redis operates like a search engine, here, with the ability to speed up queries and scale independently from the primary database (which in this case is MongoDB/ Postgressql).
Hopefully, this tutorial has helped you visualize how to use Redis with the CQRS pattern. It can help to reduce the load on your primary database while still allowing you to store and search JSON documents. For additional resources related to this topic, check out the links below:
