Mobile Banking Authentication and Session Storage Using Redis

Will Johnston
Author
Will Johnston, Developer Growth Manager at Redis
Prasan Kumar
Author
Prasan Kumar, Technical Solutions Developer at Redis
GITHUB CODE

Below is a command to the clone the source code for the application used in this tutorial

git clone --branch v1.2.0 https://github.com/redis-developer/mobile-banking-solutions

What is authentication and session storage for mobile banking?#

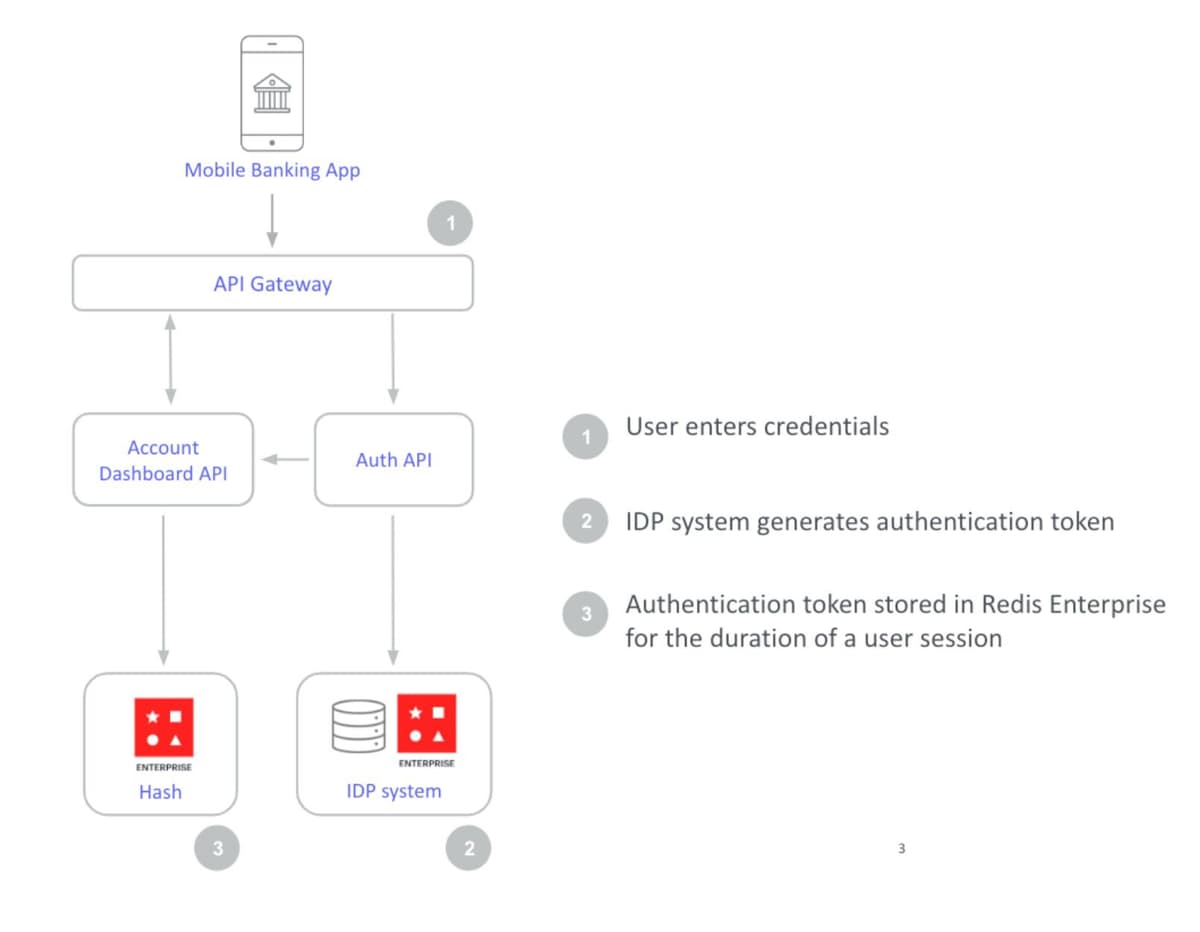

After a user has successfully entered their login credentials, mobile banking apps use a token and sessionId created by the server to represent a user's identity. The token is stored in Redis for the duration of a user session and also sent in the login response to the banking application client (mobile/ browser). The client application then sends the token with every request to server and server validates it before processing the request.

NOTE

Redis Stack supports the JSON data type and allows you to index and querying JSON and more. So your session store is not limited to simple key-value stringified data.

The session store houses critical information related to each user as they navigate an application for the duration of their session. Mobile banking session data may include, but is not limited to following information:

  • User's profile information, such as name, date of birth, email address, etc.
  • User's permissions, such as useradminsupervisorsuper-admin, etc.
  • Other app-related data like recent transaction(s), balance etc.
  • Session expiration, such as one hour from now, one week from now, etc.

Why you should use Redis for mobile banking session management?#

  • Resilience: Redis Cloud offers incredible resilience with 99.999% uptime. After all, authentication token stores must provide round-the-clock availability. This ensures that users get uninterrupted, 24/7 access to their applications.
  • Scalability: Token stores need to be highly scalable so that they don't become a bottleneck when a high volume of users authenticate at once. Redis Cloud provides < 1ms latency at incredibly high throughput (up to 100MM ops/second) which makes authentication and session data access much faster!
  • Integration with common libraries and platforms: Since Redis open source is integrated into most session management libraries and platforms, Redis Cloud can seamlessly integrate when upgrading from open source Redis (e.g. express-session and connect-redis-stack libraries integration is demonstrated in this tutorial)
TIP

Read our ebook that answers the question: Are JSON Web Tokens (JWT) Safe? It discusses when and how to safely use JWTs, with battle-tested solutions for session management.

Building session management with Redis#

GITHUB CODE

Below is a command to the clone the source code for the application used in this tutorial

git clone --branch v1.2.0 https://github.com/redis-developer/mobile-banking-solutions

Download the above source code and run following command to start the demo application

docker compose up

After docker up & running, open http://localhost:8080/ url in browser to view application

Data seeding#

This application leverages Redis core data structures, JSON, TimeSeries, Search and Query features. The data seeded is later used to show a searchable transaction overview with realtime updates as well as a personal finance management overview with realtime balance and biggest spenders updates.

On application startup in app/server.js, a cron is scheduled to create random bank transactions at regular intervals and seed those transactions in to Redis.

app/server.js
//cron job to trigger createBankTransaction() at regular intervals

cron.schedule('*/10 * * * * *', async () => {
  const userName = process.env.REDIS_USERNAME;

  createBankTransaction(userName);

  //...
});
  • The transaction generator creates a randomized banking debit or credit which will reflect on a (default) starting user balance of $100,000.00
  • The transaction data is saved as a JSON document within Redis.
  • To capture balance over time, the balanceAfter value is recorded in a TimeSeries with the key balance_ts for every transaction.
  • To track biggest spenders, an associated fromAccountName member within the sorted set bigspenders is incremented by the transaction amount. Note that this amount can be positive or negative.
app/transactions/transactionsGenerator.js
let balance = 100000.0;
const BALANCE_TS = 'balance_ts';
const SORTED_SET_KEY = 'bigspenders';

export const createBankTransaction = async () => {
  //to create random bank transaction
  let vendorsList = source.source; //app/transactions/transaction_sources.js
  const random = Math.floor(Math.random() * 9999999999);

  const vendor = vendorsList[random % vendorsList.length]; //random vendor from the list

  const amount = createTransactionAmount(vendor.fromAccountName, random);
  const transaction = {
    id: random * random,
    fromAccount: Math.floor((random / 2) * 3).toString(),
    fromAccountName: vendor.fromAccountName,
    toAccount: '1580783161',
    toAccountName: 'bob',
    amount: amount,
    description: vendor.description,
    transactionDate: new Date(),
    transactionType: vendor.type,
    balanceAfter: balance,
  };

  //redis json feature
  const bankTransaction = await bankTransactionRepository.save(transaction);
  console.log('Created bankTransaction!');
  // ...
};

const createTransactionAmount = (vendor, random) => {
  let amount = createAmount(); //random amount
  balance += amount;
  balance = parseFloat(balance.toFixed(2));

  //redis time series feature
  redis.ts.add(BALANCE_TS, '*', balance, { DUPLICATE_POLICY: 'first' });
  //redis sorted set as secondary index
  redis.zIncrBy(SORTED_SET_KEY, amount * -1, vendor);

  return amount;
};

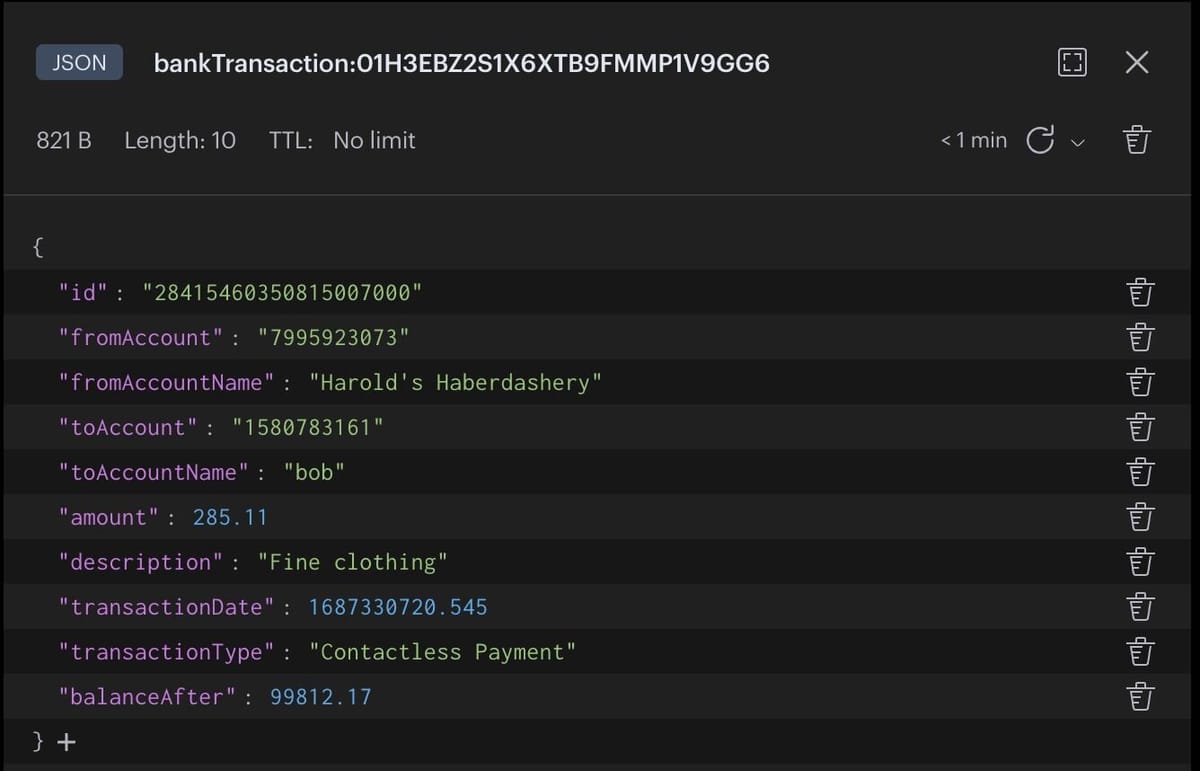

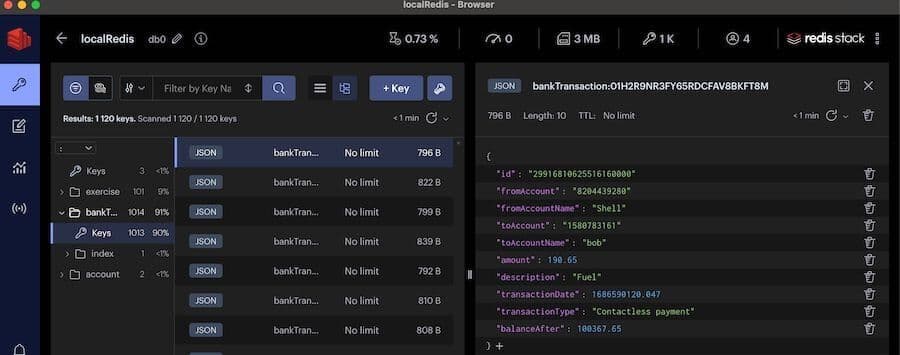

Sample bankTransaction data view using RedisInsight

TIP

Download RedisInsight to view your Redis data or to play with raw Redis commands in the workbench.

Session configuration#

Redis is integrated into many session management libraries, We will be using connect-redis-stack library for this demo which provides Redis session storage for your express-session application.

The following code illustrates configuring Redis sessions and with express-session.

app/server.js
import session from 'express-session';
import { RedisStackStore } from 'connect-redis-stack';

/* configure your session store */
const store = new RedisStackStore({
  client: redis, //redis client
  prefix: 'redisBank:', //redis key prefix
  ttlInSeconds: 3600, //session expiry time
});

const app = express();

// ...

app.use(
  session({
    store: store, //using redis store for session
    resave: false,
    saveUninitialized: false,
    secret: '5UP3r 53Cr37', //from env file
  }),
);

//...
app.listen(8080, () => console.log('Listening on port 8080'));

Login API (Session id generation)#

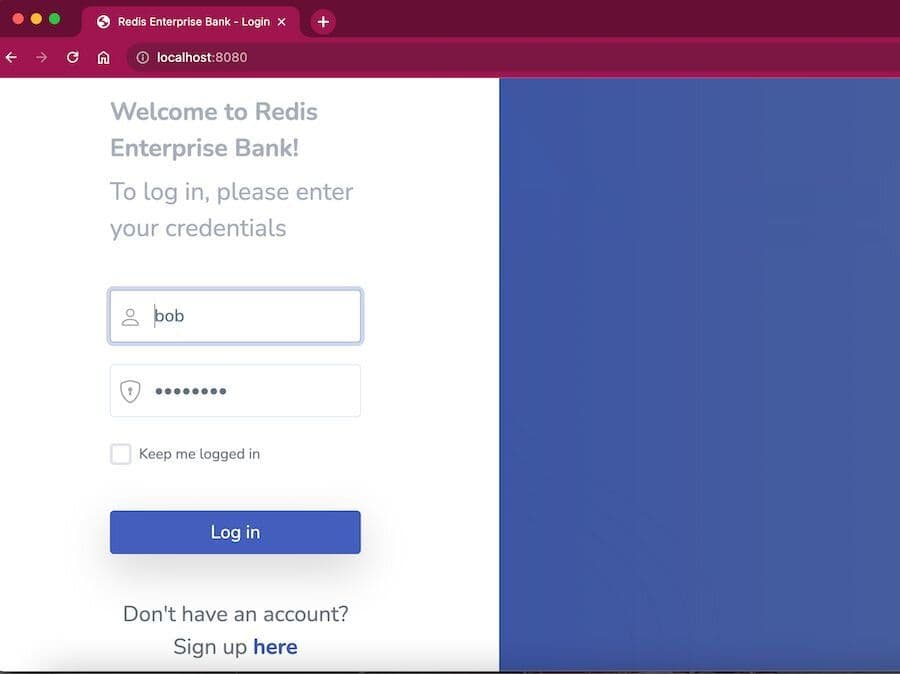

Let's look at the /perform_login API code which is triggered on the click of Login button from login page

Since connect-redis-stack is an express middleware, a session is automatically created at the start of the request, and updated at the end of the HTTP(API) response if req.session variable is altered.

app.post('/perform_login', (req, res) => {
  let session = req.session;
  console.log(session);
  /*
  Session {
    cookie: { path: '/', _expires: null, originalMaxAge: null, httpOnly: true }
  }
  */
  //hardcoded user for demo
  if (req.body.username == 'bob' && req.body.password == 'foobared') {
    //on successful login (for bob user)
    session = req.session;
    session.userid = req.body.username; //create session data
    res.redirect('/index.html');
  } else {
    res.redirect('/auth-login.html');
  }
});

In above code - session.userid variable is assigned with a value on successful login (for "bob" user), so a session is created in Redis with assigned data and only Redis key (sessionId) is stored in client cookie.

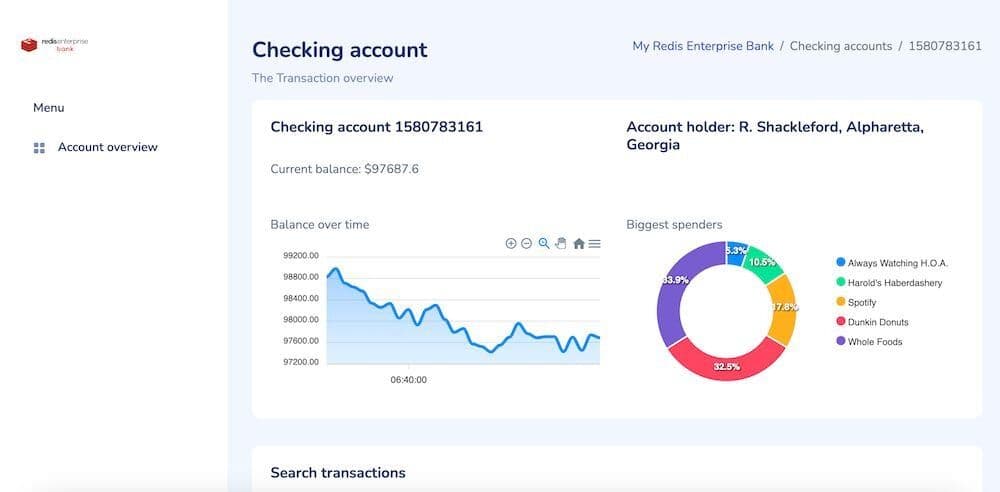

  • Dashboard page after successful login

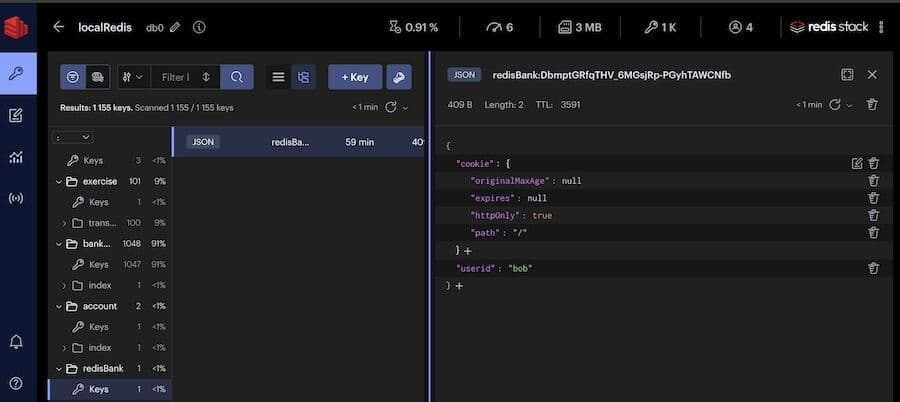

  • Session entry in Redis

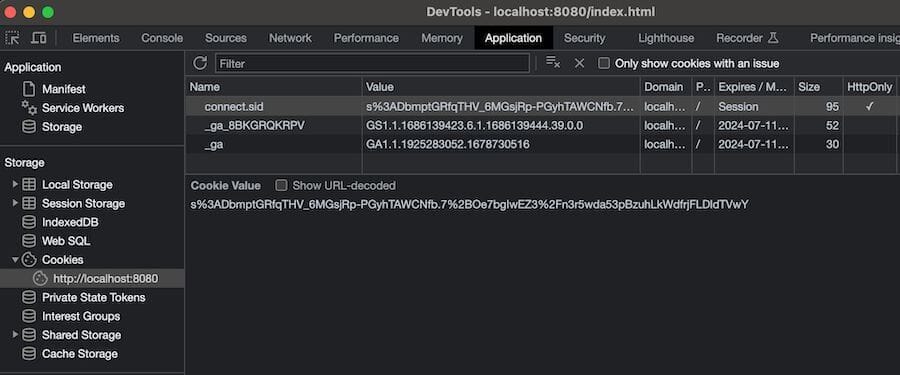

  • Open developer tools in Dashboard page to check client cookie connect.sid (containing only sessionId)

Now on every other API request from client, connect-redis-stack library makes sure to load session details from redis to req.session variable based on the client cookie (sessionId).

Balance API (Session storage)#

Consider the below /transaction/balance API code to demonstrate session storage.

We have to modify the req.session variable to update session data. Let's add more session data like current balance amount of the user .

app/routers/transaction-router.js
/* fetch all transactions up to an hour ago /transaction/balance */
transactionRouter.get('/balance', async (req, res) => {
  const balance = await redis.ts.range(
    BALANCE_TS,
    Date.now() - 1000 * 60 * 5,
    Date.now(),
  );

  let balancePayload = balance.map((entry) => {
    return {
      x: entry.timestamp,
      y: entry.value,
    };
  });

  let session = req.session;
  if (session.userid && balancePayload.length) {
    //adding latest BalanceAmount to session
    session.currentBalanceAmount = balancePayload[balancePayload.length - 1]; //updating session data
  }

  res.send(balancePayload);
});

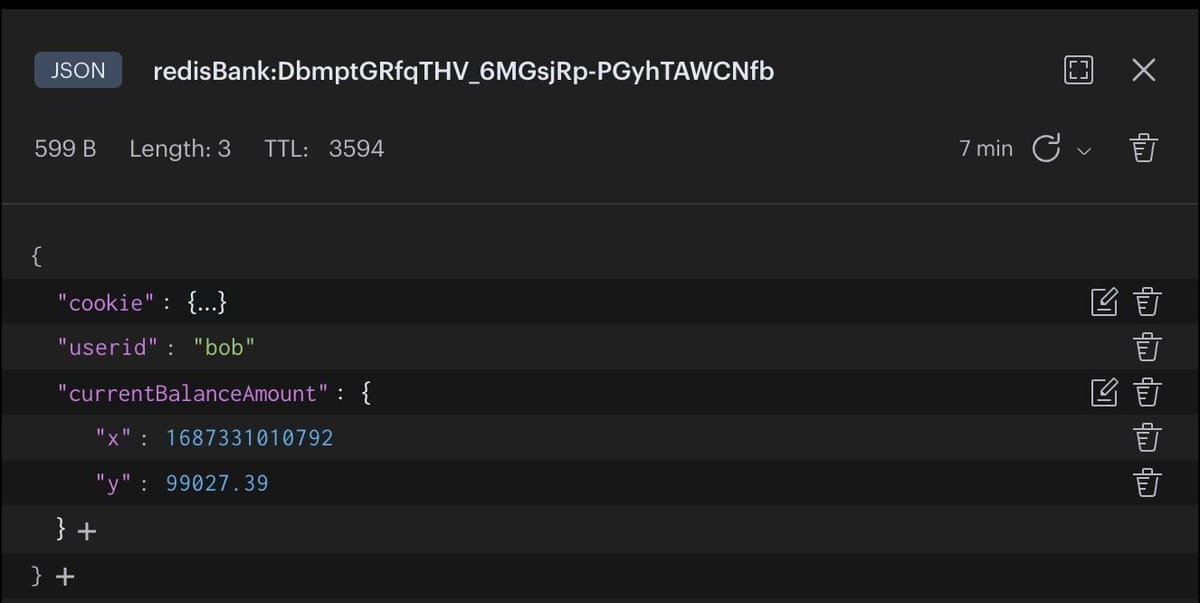

  • Updated session entry in Redis with currentBalanceAmount field ('x' denoting timestamp and 'y' denoting balance amount at that timestamp)

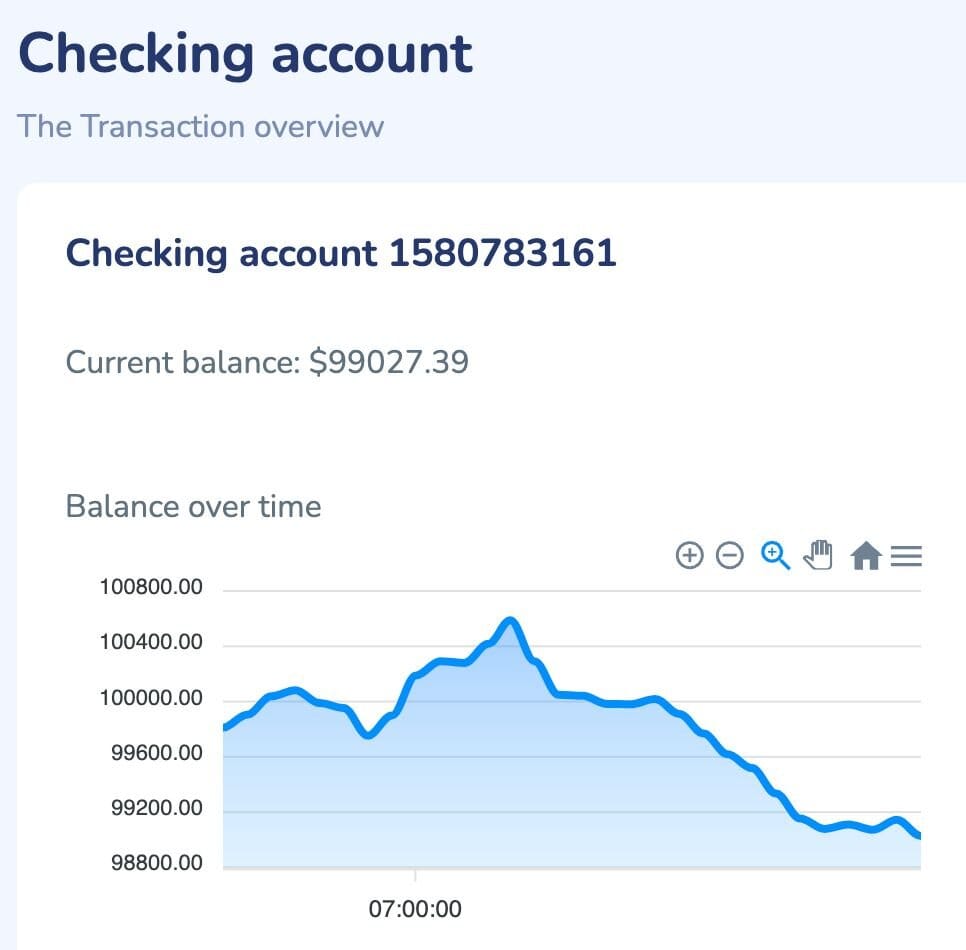

  • Verify the latest balance amount in the Dashboard UI

Ready to use Redis in session management?#

Hopefully, this tutorial has helped you visualize how to use Redis for better session management, specifically in the context of mobile banking. For additional resources related to this topic, check out the links below:
